Diagnosing & Fixing P0136 O2 Sensor Circuit Malfunction in BMW X3 & 3-Series (F30, F80)

Introduction

Imagine this: You’re driving your BMW X3 or 3-Series (F30, F80), and suddenly, the Check Engine Light (CEL) illuminates. The car still runs, but something feels off—maybe it’s lower fuel efficiency, sluggish acceleration, or a strange exhaust smell. A quick scan with an OBD-II tool reveals the P0136 fault code – O2 Sensor Circuit Malfunction (Bank 1, Sensor 2). What does this mean, and how do you fix it?

At AUTOTEK, we specialize in real-world diagnostics and expert vehicle troubleshooting. In this guide, we’ll explain why your BMW’s downstream oxygen sensor is malfunctioning, how to diagnose it, and the best way to fix it.

Understanding P0136 – O2 Sensor Circuit Malfunction (Bank 1, Sensor 2)

The downstream oxygen sensor (Sensor 2) is located after the catalytic converter and plays a crucial role in monitoring exhaust emissions. If it fails, the engine may not properly adjust the fuel-air mixture, leading to poor performance, higher emissions, and increased fuel consumption.

Common Symptoms of a Failing Downstream O2 Sensor in a BMW:

• Check Engine Light (CEL) illuminated
• Decreased fuel economy
• Rough idling or hesitation during acceleration
• Strong exhaust smell (rich fuel mixture)
• Failed emissions test
• Poor throttle response

Related Fault Codes for O2 Sensor Issues

A failing downstream O2 sensor or related wiring faults can trigger multiple fault codes:

P0137 - O2 Sensor Circuit Low Voltage (Bank 1, Sensor 2)

• The sensor is producing low voltage, which could indicate a failing heater element or wiring issue.

P0138 - O2 Sensor Circuit High Voltage (Bank 1, Sensor 2)

• The sensor is producing higher-than-expected voltage, possibly due to a malfunctioning sensor or exhaust-related problems.

P0140 - O2 Sensor No Activity Detected (Bank 1, Sensor 2)

• The sensor is unresponsive, meaning it may be completely dead or disconnected.

P0141 - O2 Sensor Heater Circuit Malfunction (Bank 1, Sensor 2)

• The built-in heater element is faulty, which affects the sensor’s ability to warm up and provide accurate readings.

P0420 & P0430 - Catalyst System Efficiency Below Threshold

• A faulty downstream O2 sensor can misread catalytic converter efficiency, leading to these fault codes.

2C9C / 2C9D - BMW-Specific O2 Sensor Codes

• These codes indicate an issue with oxygen sensor signals before or after the catalytic converter.

If you see any of these codes, your oxygen sensor is likely faulty or not functioning correctly.

Step-by-Step Diagnosis of P0136 in a BMW

Before replacing the sensor, it’s crucial to properly diagnose the issue.

Step 1: Scan for Fault Codes

• Use an OBD-II scanner to confirm P0136 or related codes.
• If multiple codes (P0137, P0138, P0420) appear, check for exhaust leaks or catalytic converter issues.

Step 2: Inspect the Oxygen Sensor & Wiring

• Locate the downstream O2 sensor (after the catalytic converter).
• Check for damaged or corroded wiring, loose connectors, or heat damage.
• If the wiring appears intact, proceed to testing the sensor.

Step 3: Test the O2 Sensor Voltage

• Using a multimeter, check the sensor’s voltage output.
• A properly functioning downstream O2 sensor should produce a steady voltage between 0.1V and 0.9V.
• If voltage fluctuates erratically or remains at 0V or high voltage, the sensor is faulty.

Step 4: Check for Exhaust Leaks

• Leaks in the exhaust before the O2 sensor can cause false readings.
• Inspect the catalytic converter for damage or clogging.

Step 5: Reset the Fault Code & Test Drive

• Clear the P0136 code using an OBD-II scanner.
• Start the engine and monitor the O2 sensor readings.
• Take the vehicle for a test drive to see if the Check Engine Light returns.
• If the code reappears, the sensor likely needs replacement.

Recommended Fix for BMW P0136 Code

If diagnosing the system confirms an oxygen sensor failure, the best solution is to replace the faulty O2 sensor.

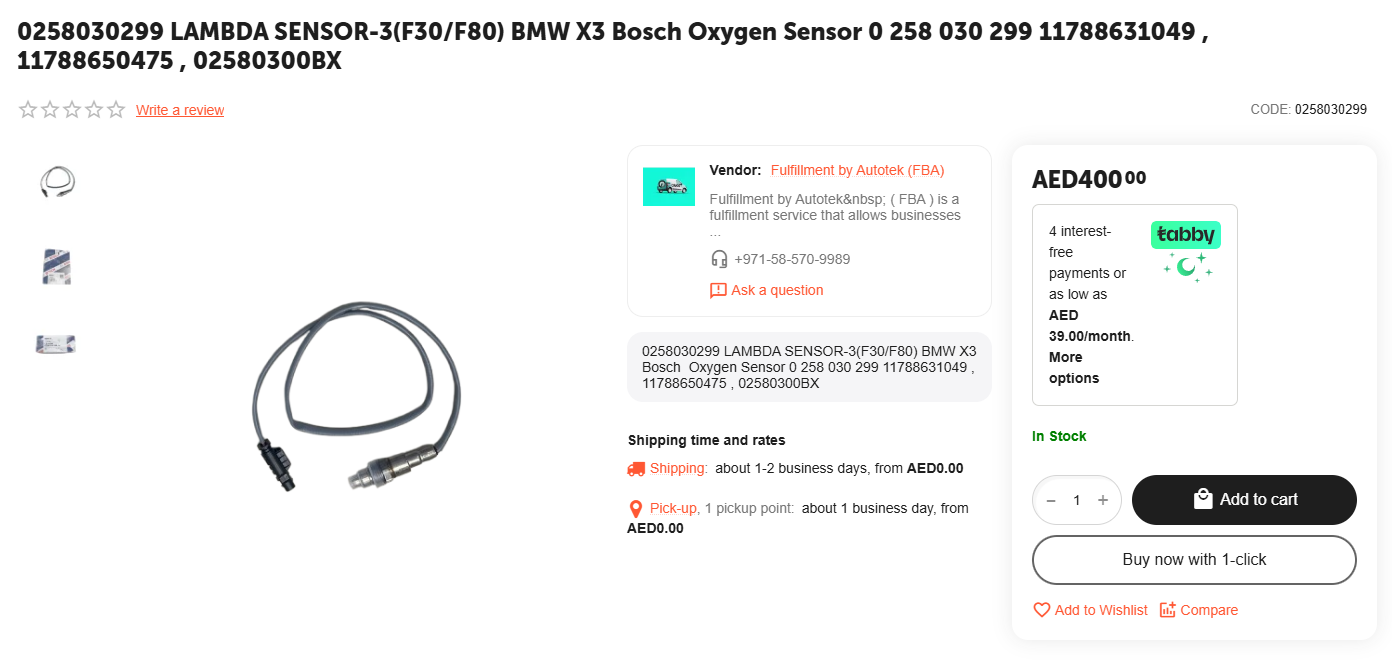

✅ Recommended Replacement Part: Downstream O2 Sensor - BMW X3, 3-Series (F30, F80) - 0258030299

Replacement Procedure:

1. Disconnect the battery to prevent electrical issues.
2. Locate the downstream O2 sensor (after the catalytic converter).
3. Unplug the sensor connector and use an O2 sensor removal tool to remove it.
4. Install the new O2 sensor and tighten it securely.
5. Reconnect the wiring harness and the battery.
6. Clear stored fault codes using an OBD-II scanner.
7. Test drive the vehicle to ensure proper function and improved performance.

Similar Fault Codes & Reference

If your vehicle displays additional exhaust-related codes, here’s how they compare:

• P0137 – O2 Sensor Circuit Low Voltage (Bank 1, Sensor 2)
• P0138 – O2 Sensor Circuit High Voltage (Bank 1, Sensor 2)
• P0140 – O2 Sensor No Activity Detected (Bank 1, Sensor 2)
• P0141 – O2 Sensor Heater Circuit Malfunction (Bank 1, Sensor 2)
• P0420 / P0430 – Catalyst System Efficiency Below Threshold
• 2C9C / 2C9D – BMW-Specific Oxygen Sensor Fault Codes

These codes all point to oxygen sensor or catalytic converter efficiency issues, which can often be resolved by replacing a faulty downstream O2 sensor.

Conclusion

The P0136 fault code in a BMW X3 or 3-Series (F30, F80) is typically caused by a malfunctioning downstream oxygen sensor. Replacing the faulty sensor can restore proper engine function, improve fuel efficiency, and prevent further emission-related issues.

If you’re experiencing this issue, consider replacing the oxygen sensor, available on AUTOTEK. Need expert guidance? Contact us for professional support.

Need More Help?

If you have any questions or need further assistance, our team at AUTOTEK is here to help! Leave a comment below or contact us directly.
