Diagnosing & Fixing C0205 Fault Code in Toyota GR86 (2022-2024)

Introduction

Imagine this: You’re driving your 2022-2024 Toyota GR86, enjoying its sharp handling and precise braking, when suddenly, the ABS warning light appears on the dashboard. A quick scan with an OBD-II tool reveals the C0205 fault code. What does this mean, and how do you fix it?

At AUTOTEK, we believe in helping vehicle owners make informed repair decisions. This guide will walk you through diagnosing, troubleshooting, and fixing C0205: Left Front Wheel Speed Sensor Signal Malfunction in your Toyota GR86.

Understanding C0205 – Left Front Wheel Speed Sensor Malfunction

The C0205 fault code indicates an issue with the left front wheel speed sensor, a critical component of the Anti-lock Braking System (ABS). This sensor monitors wheel speed and helps the ABS prevent wheel lockup during hard braking. If the sensor fails or its signal is interrupted, the ABS system may become less effective, affecting braking performance.

Common Symptoms of C0205 in a Toyota GR86:

• ABS warning light illuminated
• Traction control (TCS) or stability control (VSC) warning lights activated
• Intermittent or complete loss of ABS functionality
• Unusual braking behavior, such as wheel lockup on hard stops
• Possible limp mode activation (in rare cases)

Step-by-Step Diagnosis of C0205

Step 1: Scan for Fault Codes

• Use an OBD-II scanner to confirm the presence of C0205.
• Check for additional ABS-related codes that may indicate wiring or module issues.

Step 2: Inspect the ABS Sensor & Connections

• Locate the left front wheel speed sensor on the wheel hub assembly.
• Check for visible damage, corrosion, or dirt accumulation on the sensor.
• Inspect the sensor wiring harness for cuts, frays, or disconnections.

Step 3: Test the Wheel Speed Sensor

• Use a multimeter to check the sensor’s resistance (compare it with factory specifications).
• Spin the wheel manually while monitoring voltage output to ensure the sensor is sending signals.

Step 4: Check the ABS Reluctor Ring

• Inspect the reluctor ring (tone ring) on the wheel hub for dirt, cracks, or damage.
• Clean any debris or rust that might interfere with the sensor’s ability to read wheel speed.

Step 5: Reset the Fault Code & Test Drive

• Clear the C0205 code using an OBD-II scanner.
• Test drive the vehicle while monitoring ABS function and dashboard lights.
• If the code returns, replacement of the sensor is the next step.

Recommended Fix for Toyota GR86 C0205 Code

After diagnosing the issue, the most effective solution is to replace the faulty ABS wheel speed sensor.

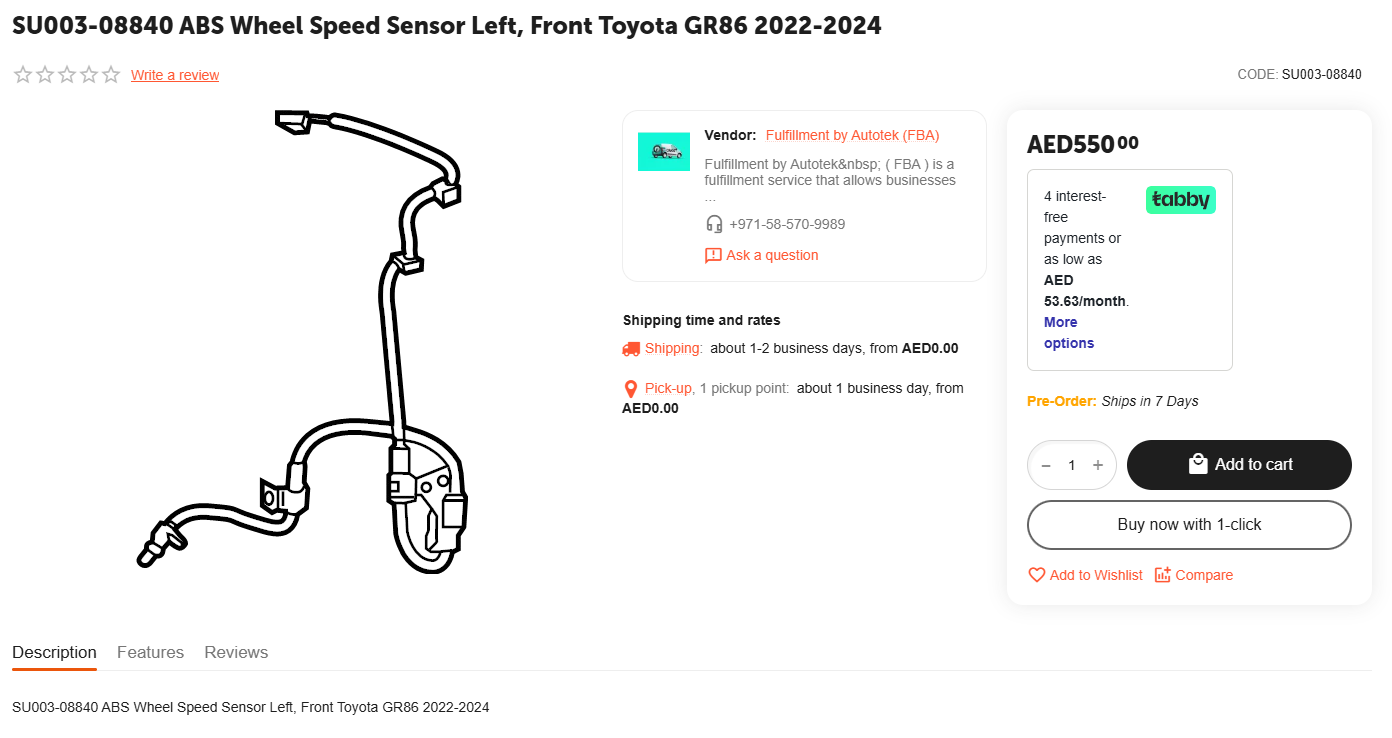

✅ Recommended Part Replacement: SU003-08840 ABS Wheel Speed Sensor - Left Front Toyota GR86 (2022-2024)

Replacement Procedure:

1. Disconnect the battery to prevent electrical damage.
2. Remove the front wheel on the affected side.
3. Unbolt and disconnect the old ABS sensor from the wheel hub and wiring harness.
4. Install the new sensor (SU003-08840) and reconnect the wiring securely.
5. Reattach the wheel and lower the vehicle.
6. Reset the ABS system by clearing fault codes using an OBD-II scanner.
7. Test drive the vehicle to ensure proper ABS operation.

Similar Fault Codes & Reference

The C0205 fault code is specific to the left front wheel speed sensor but similar issues can occur in other wheels of the vehicle. Below are related fault codes with the same diagnostic and troubleshooting approach:

• C0200 – Right Front Wheel Speed Sensor Signal Malfunction
• C0205 – Left Front Wheel Speed Sensor Signal Malfunction
• C0210 – Right Rear Wheel Speed Sensor Signal Malfunction
• C0215 – Left Rear Wheel Speed Sensor Signal Malfunction
